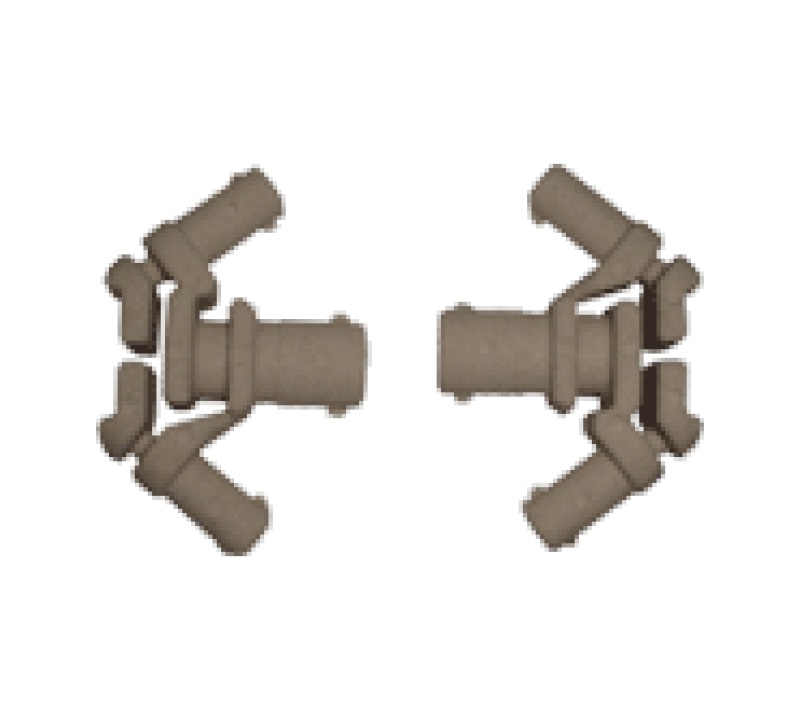

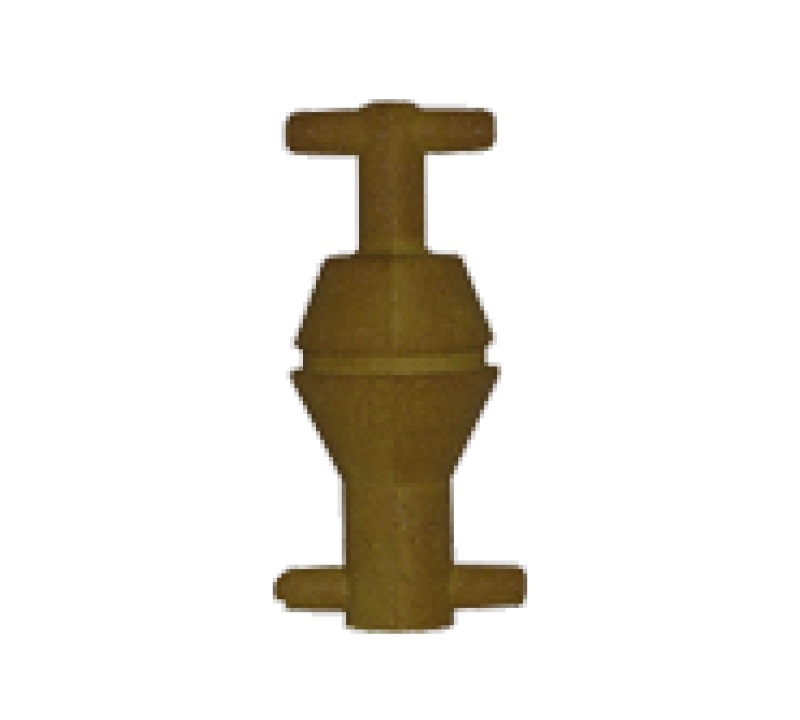

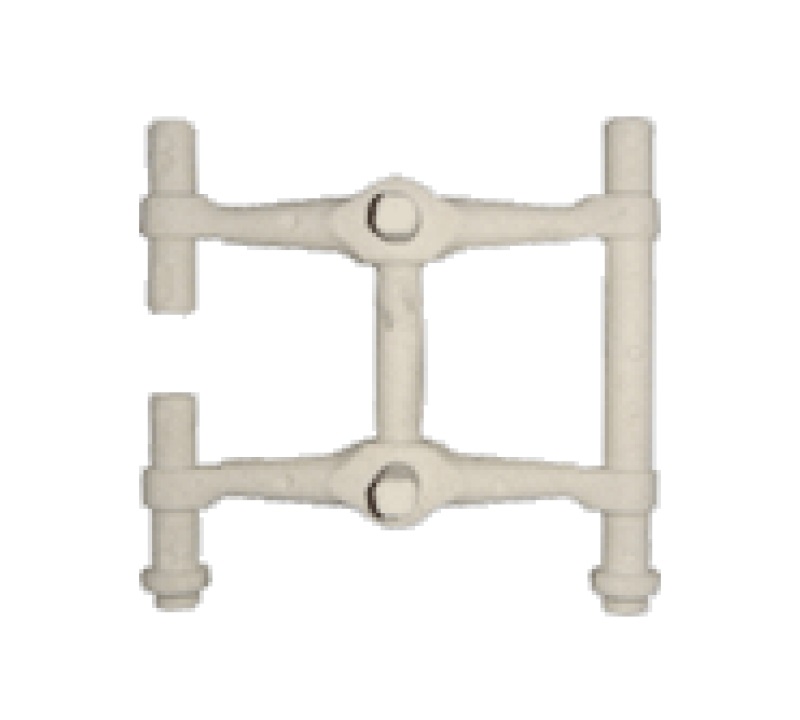

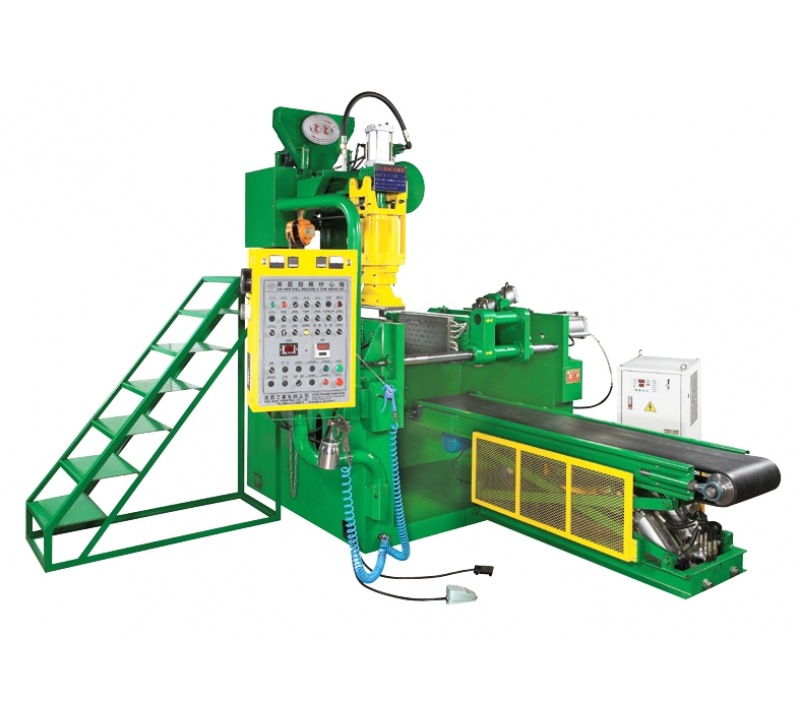

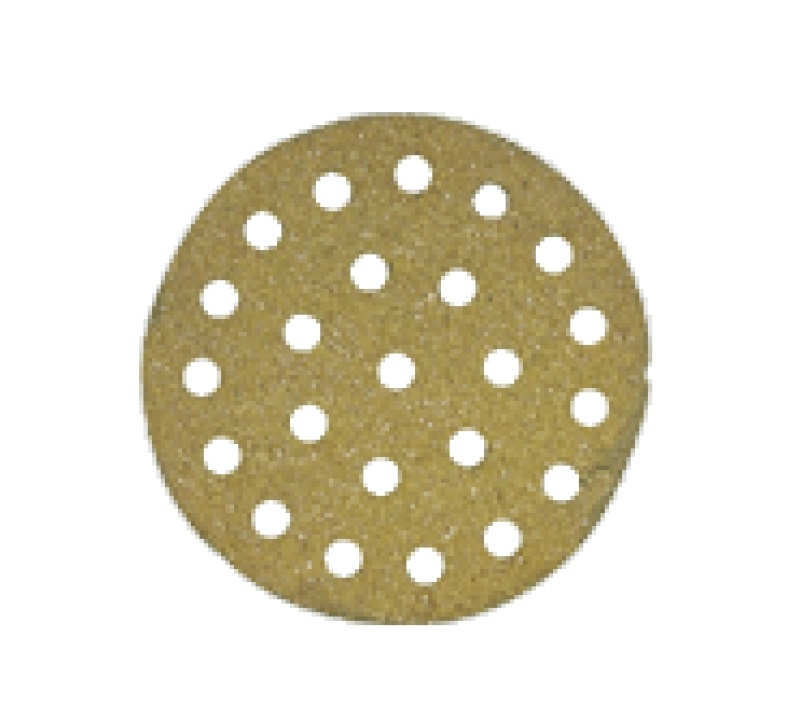

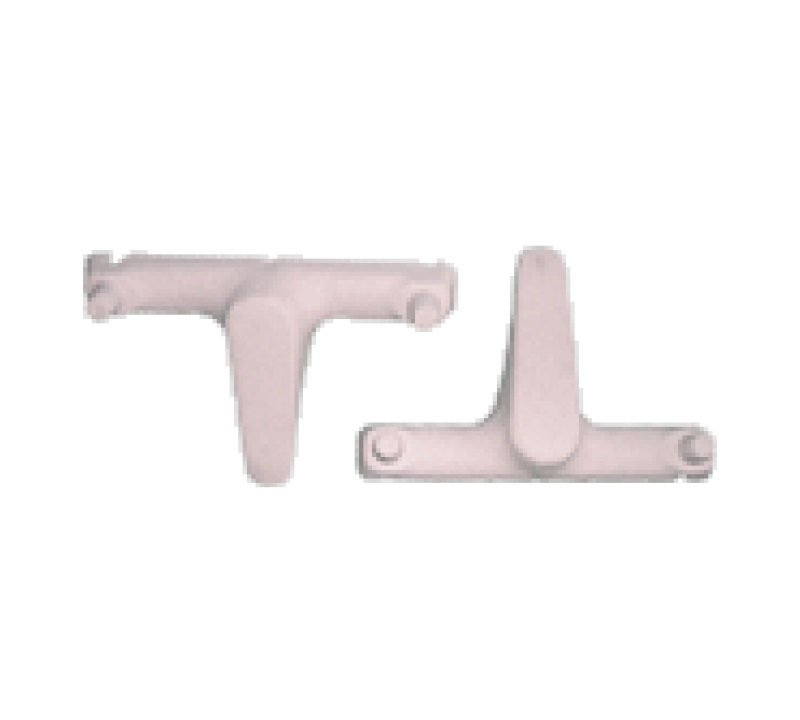

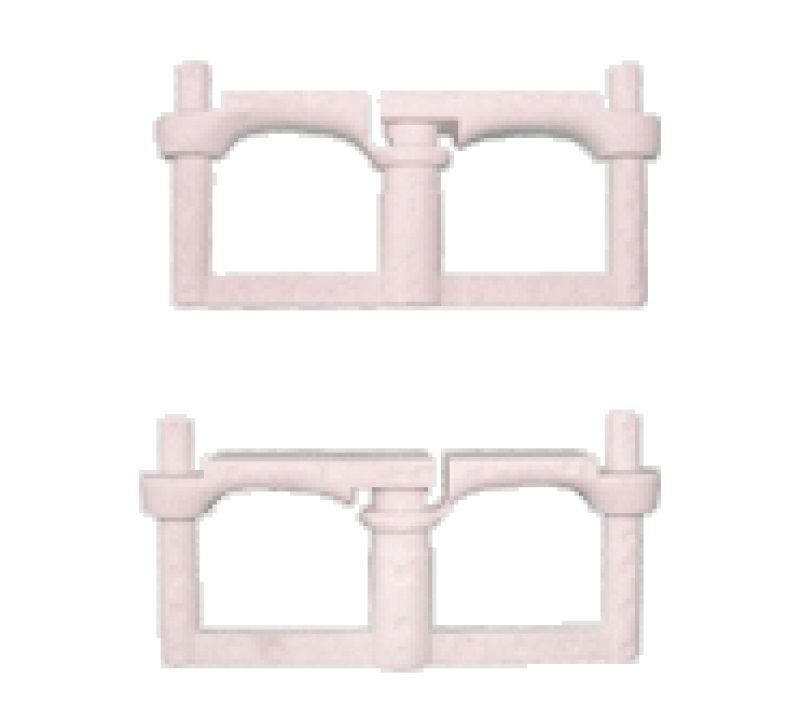

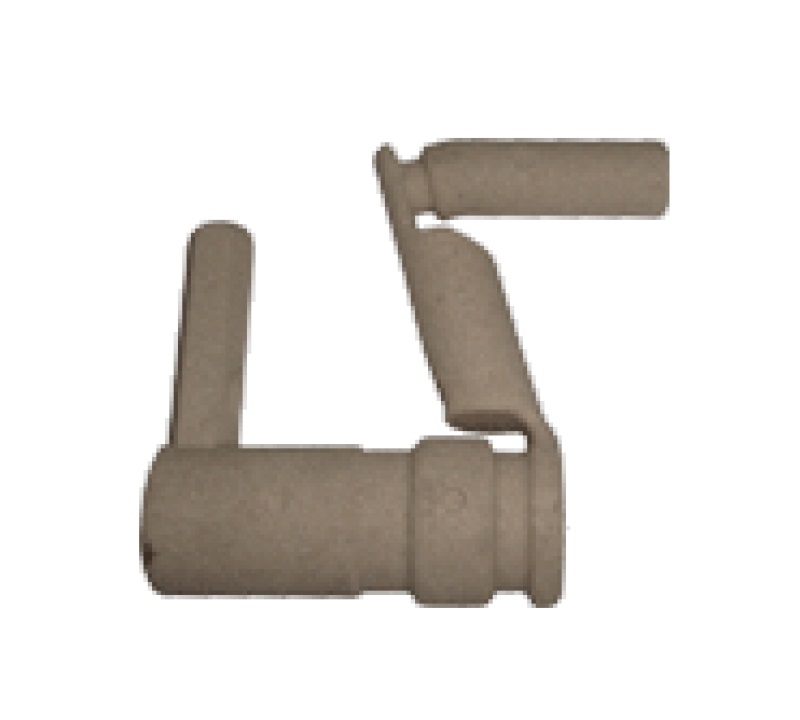

Our Pre-Mixed Resin Sand Core Shooting Machine operates as integral foundry machine within the casting process. Its function is to produce the sand cores required to form internal cavities or complex shapes in metal castings.
Specifically for copper alloy casting, particularly those with lower melting points, the cores generated using pre-mixed resin sand offer distinct advantages. Their neutral properties and solid structure assist in minimizing the occurrence of porosity within the finished copper parts.
| Model | KKF38-18 | KKF40-20 | KKF45-25 | KKF50-28 |
|---|---|---|---|---|
| Max. Core Size (L x H x W) |
350 x 160 x 200 mm | 380 x 180 x 200 mm | 420 x 220 x 220 mm | 480 x 260 x 250 mm |
| Operation Mode | Manual/Single Cycle/Auto Cycle | |||
| Production Speed | 40 ~ 70 seconds/cycle, depends on size and shape of products | |||
| Heating Type | Electrical | |||
| Max. Blowing Capacity | 3 kgs | 4 kgs | 5 kgs | 6 kgs |
| Sand Storage Capacity | 15-20 kgs | |||
| Operation Pressure | 5-6 kgs/cm² | |||
| Sand Blowing Pressure | 2-5 kgs cm² | |||
| Weight | 2100 kgs | 2300 kgs | 2500 kgs | 2700 kgs |
| Dimension | 2500 x 2150 x 2400 mm | 2500 x 2200 x 2500 mm | 2600 x 2200 x 2600 mm | 2600 x 2300 x 2600 mm |
