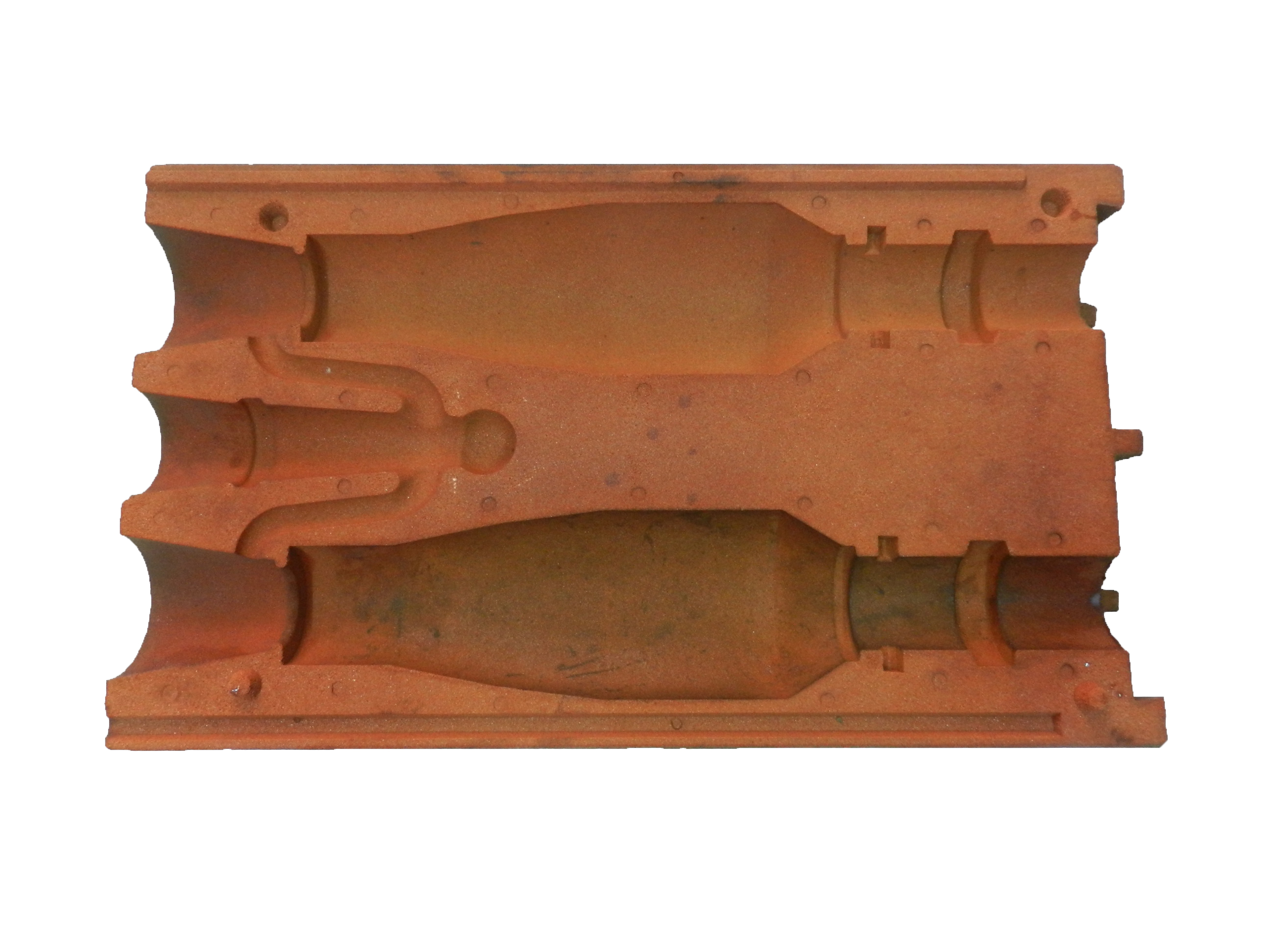

Therefore, the conveyor belt cannot be installed to automatically send the sand core out of the machine, so the sand core must be taken manually.
| Model | KKB-600X1200 | KKB-650X600 | KKB-800X800 |
|---|---|---|---|
| Core Box Size (L x H x W) | 600 x 1200 x 300 mm | 600 x 500 x 300 mm | 600 x 1200 x 300 mm |
| Max. Core Size (L x H x W) | 520 x 1180 x 300 mm | 520 x 480 x 300 mm | 520 x 1180 x 300 mm |
| Operation Mode | Manual/Single Cycle/Auto Cycle | ||
| Production Speed | 600 ~ 180seconds/cycle, depends on size and shape of products | ||
| Heating Type | LPG or Electrical | ||
| Max. Blowing Capacity | 50-100 kgs | 50-100 kgs | 50-100 kgs |
| Sand Storage Capacity | 300-500 kgs | ||
| Operation Pressure | 5-6 kgs/cm² | ||
| Sand Blowing Pressure | 1-4 kgs/cm² | ||
| Weight | 5000 kgs | 3000 kgs | 3500 kgs |
| Dimension | 3200 x 3750 x 4000 mm | 3000 x 3500 x 3900 mm | 3300 x 3850 x 4200 mm |
