KKA-700X600

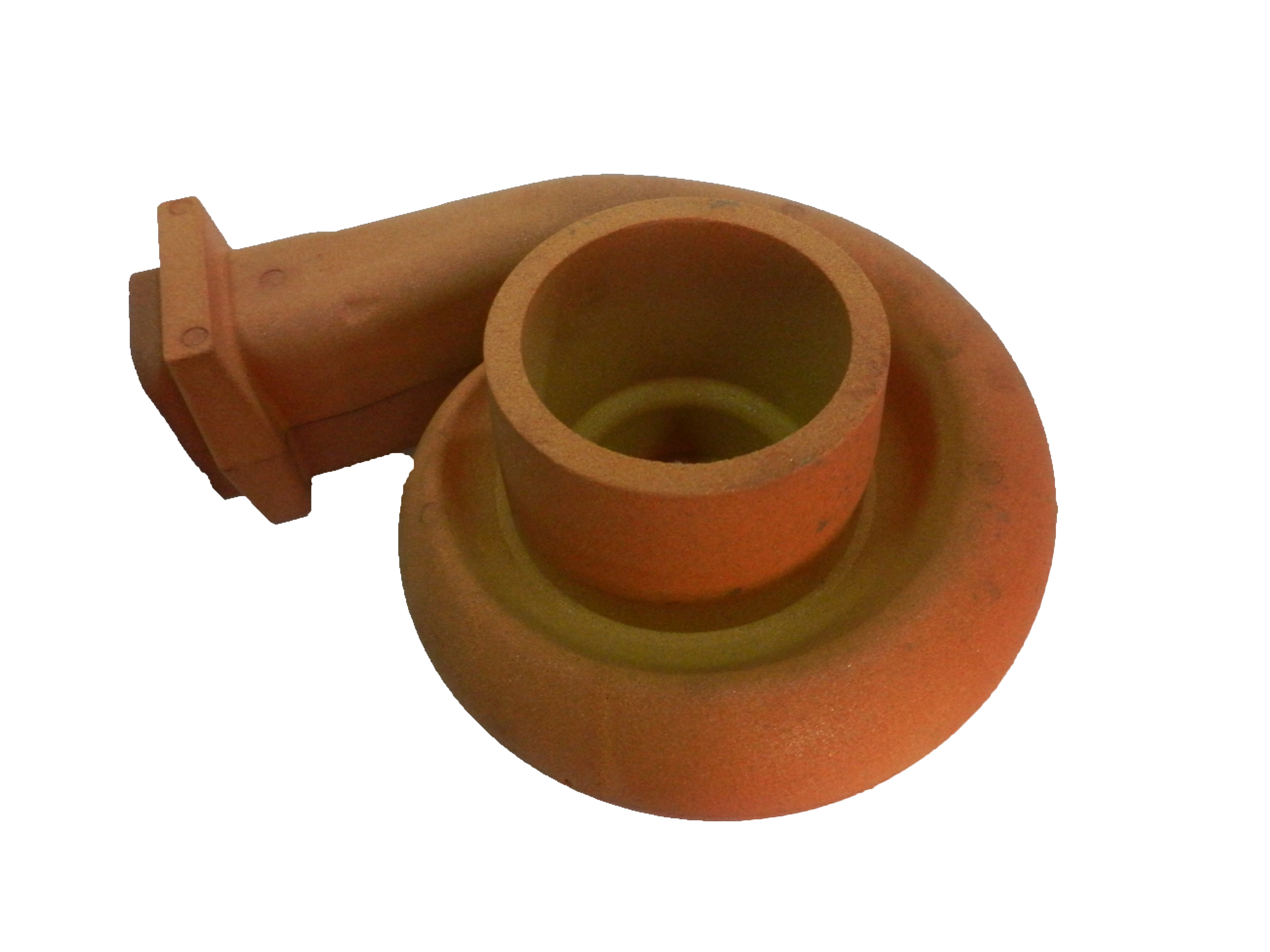

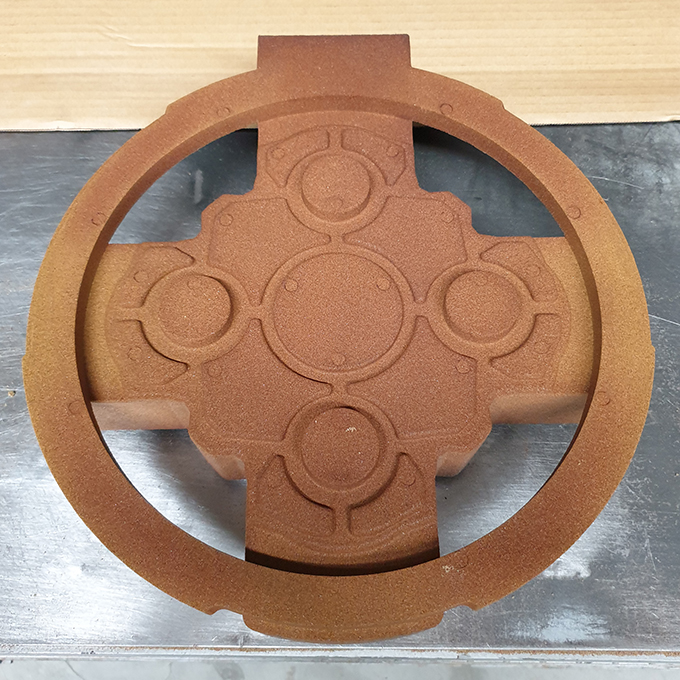

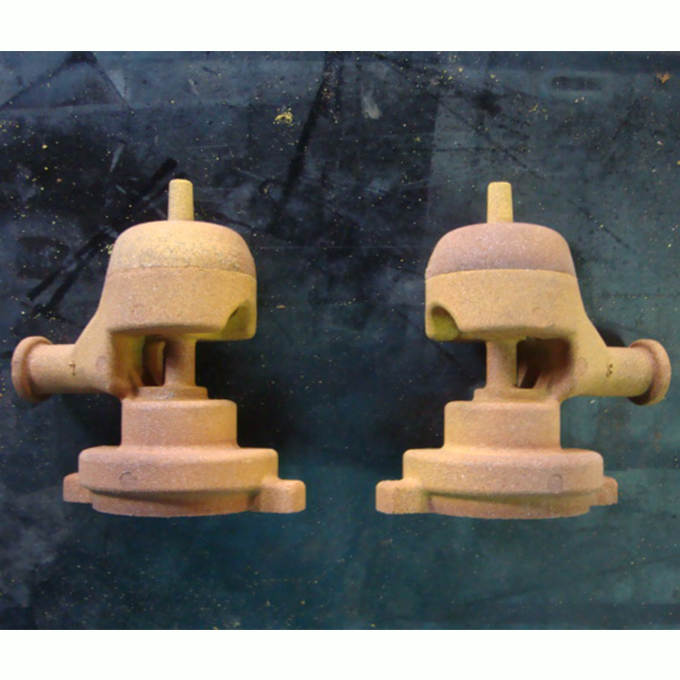

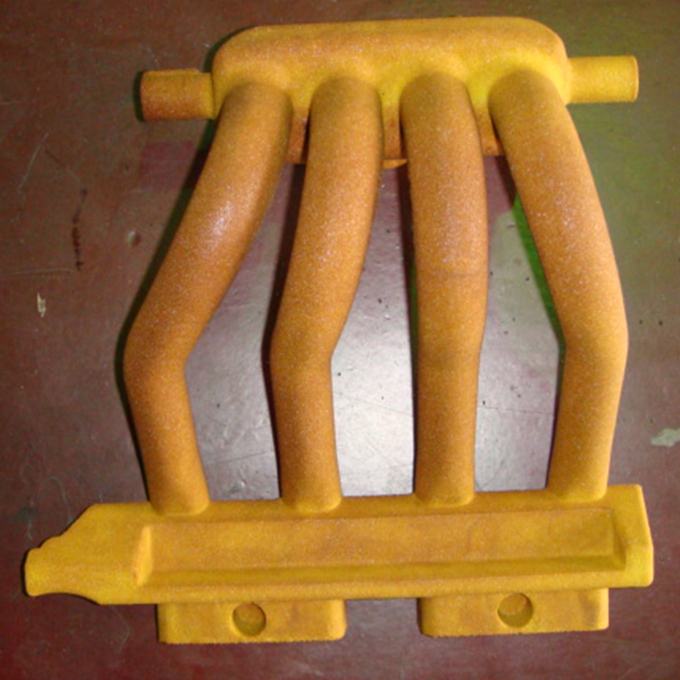

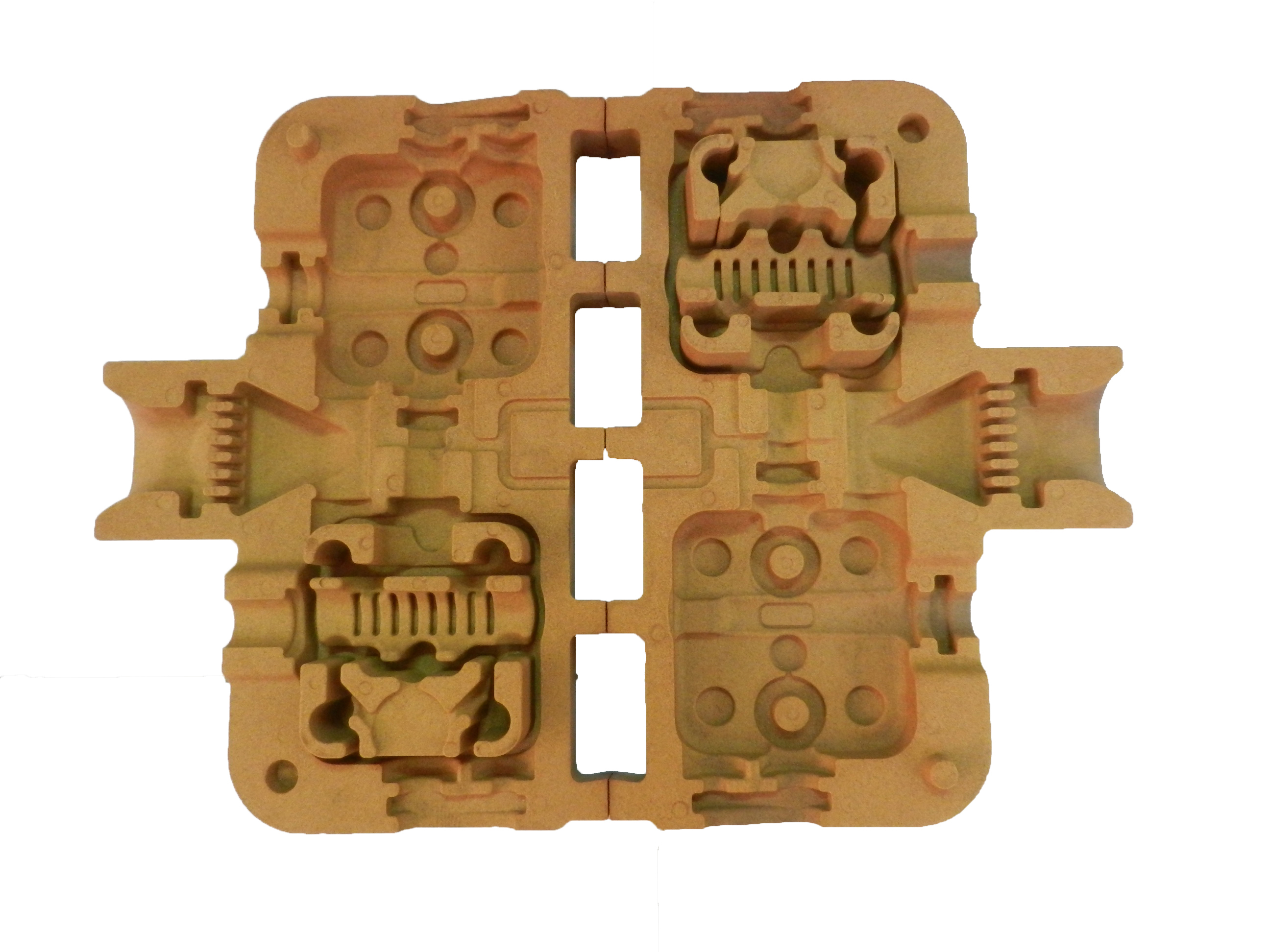

Vertical core shooting machine will allow core box rotating 180° and drain excessive resin sand out of core box. Therefore, core will come out in hollow. 1 ~ 4 kg/cm² shooting pressure will make core surface very firm and solid.
This machine can be installed a conveyor belt to automatically send the sand cores out of the machine. Therefore, without the need to manually take the cores.

Model	KKA-430	KKA-440	KKA-530	KKA-540	KKA-550	KKA-600	KKA-650	KKA-700X600
Core Box Size (LxHxW) mm	450x300x250	450x400x250	500x300x250	500x400x250	550x400x300	600x400x300	650x500x300	700x600x300
Max. Core Size (LxHxW) mm	370x280x200	370x380x200	420x280x200	420x380x200	470x380x250	520x380x300	570x480x300	620x580x300
Operation Mode	Manual/Single Cycle/Auto Cycle
Production Speed	40 ~ 70 seconds/cycle, depends on size and shape of products
Heating Type	LPG or Electrical
Max. Blowing Capacity	10-20 kgs	15-25 kgs	15-25 kgs	15-25 kgs	15-30 kgs	15-30 kgs	15-30 kgs	15-30 kgs
Sand Storage Capacity	200-300 kgs
Operation Pressure	5-6 kgs/cm²
Sand Blowing Pressure	1-4 kgs/cm²
Weight	2650 kgs	2850 kgs	2800 kgs	3000 kgs	3200 kgs	3500 kgs	4300 kgs	4700 kgs
Dimension(m) LxWxH	3.6x3.5x3.2	3.6x3.5x3.3	3.6x3.5x3.2	3.6x3.5x3.3	3.6x3.67x3.3	3.6x3.75x3.5	4.4x4.85x4.0	4.6x5.0x4.2
